• CPU
1. Support for 10th Generation Intel^® Core™ i9 processors/Intel^® Core™ i7 processors/Intel^® Core™ i5 processors/Intel^® Core™ i3 processors/Intel^® Pentium^® processors/Intel^® Celeron^® processors in the LGA1200 package
2. L3 cache varies with CPU

(Please refer "CPU Support List" for more information.)

• Chipset
1. Intel^® H470 Express Chipset
• Memory
1. Intel^® Core™ i9/i7 processors:
   Support for DDR4 2933/2666/2400/2133 MHz memory modules
2. Intel^® Core™ i5/i3/Pentium^®/Celeron^® processors:
   Support for DDR4 2666/2400/2133 MHz memory modules
3. 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
4. Dual channel memory architecture
5. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
6. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
7. Support for Extreme Memory Profile (XMP) memory modules

(Please refer "Memory Support List" for more information.)

• Onboard Graphics

Integrated Graphics Processor-Intel^® HD Graphics support:

1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
2. 1 x HDMI ports, supporting a maximum resolution of 4096x2160@30 Hz
   * Support for HDMI 1.4 version and HDCP 2.3.

Maximum shared memory of 512 MB

• Audio
1. Realtek^® Audio CODEC
2. High Definition Audio
3. 2/4/5.1/7.1-channel
   * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.
• LAN
1. Intel^® GbE LAN chip (1 Gbit/100 Mbit)
• Expansion Slots
1. 1 x PCI Express x16 slot, running at x16
2. 2 x PCI Express x1 slots
   (The PCI Express slots conform to PCI Express 3.0 standard.)

Supports up to ASPM L1.2 power management protocols.

• Storage Interface
1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support)
2. 4 x SATA 6Gb/s connectors
3. Support for RAID 0, RAID 1, RAID 5, and RAID 10
4. Intel^® Optane™ Memory Ready

M.2 connectors support up to ASPM L1.2 PCIe power management protocols.

• USB

Chipset:

1. 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
2. 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
• Internal I/O Connectors
1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x CPU fan header
4. 1 x system fan header
5. 1 x RGB LED strip header
6. 4 x SATA 6Gb/s connectors
7. 1 x front panel header
8. 1 x front panel audio header
9. 1 x USB 3.2 Gen 1 header
10. 1 x USB 2.0/1.1 header
11. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
12. 1 x serial port header
13. 1 x Clear CMOS jumper

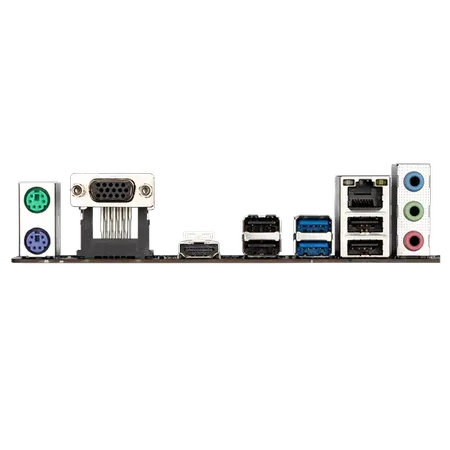

• Back Panel Connectors
1. 1 x PS/2 keyboard/mouse port
2. 1 x D-Sub port
3. 1 x HDMI port
4. 2 x USB 3.2 Gen 1 ports
5. 4 x USB 2.0/1.1 ports
6. 1 x RJ-45 port
7. 3 x audio jacks
• I/O Controller
1. iTE^® I/O Controller Chip
• H/W Monitoring
1. Voltage detection
2. Temperature detection
3. Fan speed detection
4. Overheating warning
5. Fan fail warning
6. Fan speed control
   * Whether the fan speed control function is supported will depend on the cooler you install.
• BIOS
1. 1 x 256 Mbit flash
2. Use of licensed AMI UEFI BIOS
3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Unique Features
1. Support for APP Center
   * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
   @BIOS
   Ambient LED
   EasyTune
   Fast Boot
   Game Boost
   ON/OFF Charge
   Smart Backup
   System Information Viewer
2. Support for Q-Flash
3. Support for Xpress Install
• Bundled Software
1. Norton^® Internet Security (OEM version)
2. cFosSpeed
• Operating System
1. Support for Windows 10 64-bit
• Form Factor
1. Micro ATX Form Factor; 22.6cm x 18.5cm
