• Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
• Supports DDR4 Memory, up to 3200(MAX) MHz
• Core Boost : With premium layout and digital power design to support more cores and provide better performance
• Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
• Lightning Fast Experience: PCIe 4.0
• Audio Boost: Reward your ears with studio grade sound quality
• Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.

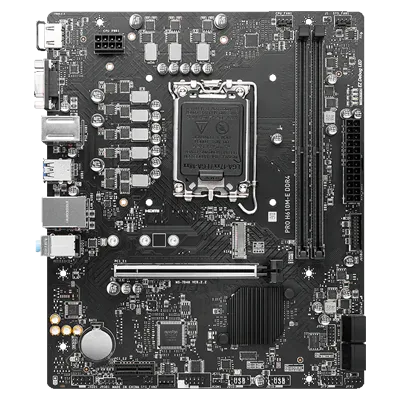

Model

• MSI PRO H610M-E DDR4

Processor

• Supports Intel® Core™ 14th/13th/12th Gen processors, Intel® Pentium® Gold and Celeron® processors
• Processor socket LGA1700

Chipset

• Intel® H610 Chipset

Memory

• 2x DDR4 memory slots, supports up to 64GB
• supports 1R 2133/2666/3200 MHz (by JEDEC & POR)
• supports Dual-Channel mode
• supports non-ECC, un-buffered memory

Expansion Slot

• 1x PCIe x16 slot (from CPU, supports up to PCIe 4.0 x16)
• 1x PCIe x1 slot (from H610 chipset, supports PCIe 3.0 x1)

Onboard Graphics

• 1x HDMI™ 1.4 with HDR port, max resolution 4K 30Hz
• 1x VGA port, max resolution 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
• available only on processors featuring integrated graphics, and specifications may vary depending on the CPU installed

SATA Ports

• 4x SATA 6Gb/s ports (from H610 chipset)

M.2 SSD Slot

• 1x M.2 slot (Key M, from H610 chipset)
• supports up to PCIe 3.0 x4
• supports up to SATA 6Gb/s
• supports 2242/2260/2280 storage devices

Audio

• Realtek® ALC897 Codec, 7.1-Channel High Definition Audio

LAN

• 1x Realtek® RTL8111H 1Gbps LAN controller

Power Connectors

• 1x 24-pin ATX main power connector
• 1x 8-pin +12V power connector

Internal USB Connectors

• 1x USB 3.2 Gen 1 5Gbps connector (from H610 chipset, supports additional 2 USB 3.2 Gen 1 5Gbps ports)
• 2x USB 2.0 Type-A connectors (from Hub-GL850G, supports additional 4 USB 2.0 ports)

Fan Connectors

• 1x 4-pin CPU fan connector; 2x 4-pin system fan connectors

System Connectors

• 1x Front panel audio connector
• 2x System panel connectors
• 1x Chassis Intrusion connector
• 1x TPM module connector
• 1x Serial port connector

Jumpers

• 1x Clear CMOS jumper

LED Features

• 1x 4-pin RGB LED connector
• 4x EZ Debug LED

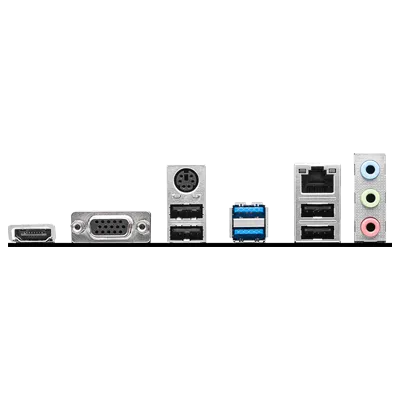

Back Panel Ports

• HDMI™
• VGA
• Keyboard / Mouse
• USB 3.2 Gen 1 5Gbps Type-A
• LAN port
• Audio connector; USB 2.0

Dimensions

• M-ATX form factor
• 9.3 in. x 7.9 in. (23.6 cm x 20 cm)
