• Latest DDR5 Memory: A huge step of DDR performance enhancement with the latest DDR5 memory and MSI Memory Boost  technology.
• Lightning Gen4 Solution: The latest Gen4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed.
• 2.5G Network Solution: Featuring premium 2.5G LAN to deliver better network experience.
• EZ Debug LED: Easiest way to troubleshoot.
• Frozr AI Cooling: Detect CPU & GPU temperatures and automatically adjust system fan duty to a proper value.
• Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility.
• Core Boost: With premium layout and fully digital power design to support more cores and provide better performance.

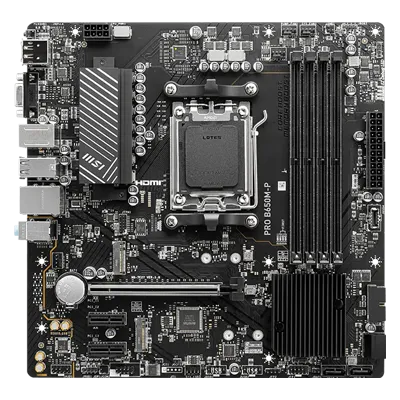

• Product Specfication

• AMD B650

• Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors

• AM5

• 4x DDR5
• Maximum Memory Capacity: 256GB
• Memory Suppor: DDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
• Max. overclocking frequency: 1DPC 1R Max speed up to 7200+ MHz | 1DPC 2R Max speed up to 6000+ MHz | 2DPC 1R Max speed up to 6000+ MHz | 2DPC 2R Max speed up to 5400+ MHz
• Supports Dual-Channel mode
• Supports non-ECC, un-buffered memory
• Supports AMD EXPO

• 1x HDMI: Support HDMITM 2.1, maximum resolution of 4K 60Hz*
• 1x DisplayPort: Supports DP 1.4, maximum resolution of 4K 60Hz*
• 1x VGA: Support VGA, maximum resolution of 1920x1200 60Hz*

• 1x PCI-E x16 slot: Supports x16 (For Ryzen™ 9000/ 7000 Series processors) | Supports x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) | Supports x4 (For Ryzen™ 8500/ 8300 Series processors)
• 2x PCI-E x1 slot
• PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
• PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
• PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)

• Realtek® ALC897 Codec
• 7.1-Channel High Definition Audio

• 2x M.2
• M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
• M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
• 4x SATA 6G

• Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
• Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

• 4x USB 2.0 (Rear)
• 4x USB 2.0 (Front)
• 2x USB 5Gbps Type A (Rear)
• 2x USB 5Gbps Type A (Front)
• 2x USB 10Gbps Type A (Rear)
• 1x USB 10Gbps Type C (Front)

LAN

• Realtek® 8125BG 2.5G LAN

Internal IO

• 1x Power Connector(ATX_PWR)
• 1x Power Connector(CPU_PWR)
• 1x CPU Fan
• 1x Pump Fan
• 3x System Fan
• 2x Front Panel (JFP)
• 1x Chassis Intrusion (JCI)
• 1x Front Audio (JAUD)
• 1x Com Port (JCOM)
• 2x Addressable V2 RGB LED connector (JARGB_V2)
• 2x RGB LED connector(JRGB)
• 1x TPM pin header(Support TPM 2.0)
• 4x USB 2.0 ports
• 2x USB 5Gbps Type A ports
• 1x USB 10Gbps Type C ports

LED FEATURE

• 4x EZ Debug LED

Back panel ports

• DisplayPort
• VGA
• Keyboard/Mouse
• USB 2.0
• LAN port
• Audio connectors
• Flash BIOS Button
• HDMI
• USB 2.0
• USB 3.2 Gen 1 5Gbps (Type-A)
• USB 3.2 Gen 2 10Gbps (Type-A)
