General Specifications

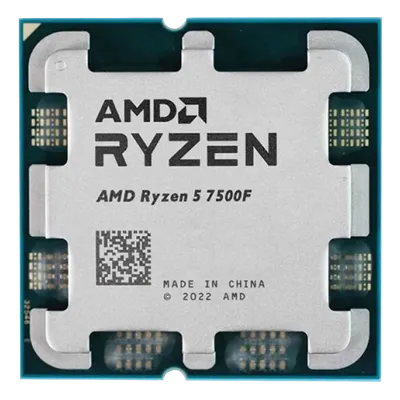

• Name:AMD Ryzen™ 5 7500F
• Family:Ryzen
• Series:Ryzen 7000 Series
• Form Factor:Desktops , Boxed Processor
• Market Segment:Enthusiast Desktop
• Former Codename:Raphael AM5
• Processor Architecture:Zen 4
• # of CPU Cores:6
• Multithreading (SMT):Yes
• # of Threads:12
• Max. Boost Clock :Up to 5 GHz
• Base Clock :3.7 GHz
• L1 Cache:384 KB
• L2 Cache:6 MB
• L3 Cache:32 MB
• Default TDP:65W
• Processor Technology for CPU Cores:TSMC 5nm FinFET
• Processor Technology for I/O Die:TSMC 6nm FinFET
• CPU Compute Die (CCD) Size:71mm²
• I/O Die (IOD) Size:122mm²
• Package Die Count:2
• Unlocked for Overclocking :Yes
• AMD EXPO™ Memory Overclocking Technology:Yes
• Precision Boost Overdrive:Yes
• Curve Optimizer Voltage Offsets:Yes
• AMD Ryzen™ Master Support:Yes
• CPU Socket:AM5
• Supporting Chipsets:A620 , X670E , X670 , B650E , B650 , X870E , X870 , B840 , B850
• CPU Boost Technology:Precision Boost 2
• Instruction Set:x86-64
• Supported Extensions:AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64
• Thermal Solution (PIB):AMD Wraith Stealth
• Thermal Solution (MPK):AMD Wraith Stealth
• Max. Operating Temperature (Tjmax):95°C
• Launch Date:07/22/2023
• OS Support:Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit

Connectivity

• Native USB 3.2 Gen 2 (10Gbps):4
• Native USB 3.2 Gen 1 (5Gbps):0
• Native USB 2.0 (480Mbps):1
• Native SATA Ports:0
• PCI Express® Version:PCIe® 5.0
• Native PCIe® Lanes (Total/Usable):28 , 24
• Additional Usable PCIe Lanes from Motherboard:X670E - 12x Gen4 | X670 - 12x Gen4 | B650E - 8x Gen4 | B650 - 8x Gen4 | A620 - 4x Gen3
• NVMe Support:Boot , RAID0 , RAID1 , RAID10
• System Memory Type:DDR5
• Memory Channels:2
• Max. Memory:128 GB
• System Memory Subtype:UDIMM
• Max Memory Speed:2x1R DDR5-5200|2x2R DDR5-5200|4x1R DDR5-3600|4x2R DDR5-3600
• ECC Support:Yes (Requires mobo support)

Graphics Capabilities

• Graphics Model:Discrete Graphics Card Required

Product IDs

• Product ID Tray:100-000000597
• Product ID MPK:100-100000597MPK

Key Features

• Supported Technologies:AMD EXPO™ Technology , AMD Ryzen™ Technologies
